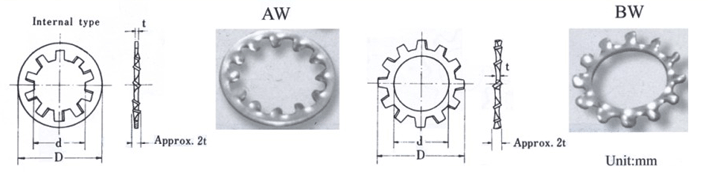

 AW, BW 详细资料 |
| 名 称：AW, BW
|
| 型 号： |
| 类 型：
(Null)
|
| 规 格： |
| 日 期：2011-10-11 16:27:01 |
|
| AW |
BW |
Screw Size |
d |
D |
t |
Teeth number |
| Nominal Size |
m/m |
Inch |
Basic |
Tol. |
Basic |
Tol. |
Basic |
Tol. |
Internal |
External |
| AW- |
2 |
BW- |
2 |
2 |
– |
2.2 |
十0.20 -0.00 |
4.8 |
十0.00 -0.30 |
0.3 |
±0.025 |
7 |
8 |
| 2.3 |
2.3 |
2.3 |
– |
2.5 |
5.3 |
0.3 |
7 |
8 |
| 2.5 |
2.5 |
2.5(2.6) |
– |
2.7 |
5.7 |
0.3 |
7 |
8 |
| 3 |
3 |
3 |
– |
3.2 |
6.5 |
十0.00 -0.40 |
0.45 |
±0.035 |
7 |
8 |
| 3.5 |
3.5 |
3.5 |
– |
3.7 |
7.5 |
0.45 |
8 |
8 |
| 4 |
4 |
4 |
– |
4.3 |
8.5 |
0.45 |
8 |
8 |
| 4.5 |
4.5 |
4.5 |
– |
4.8 |
9.5 |
0.5 |
8 |
8 |
| 5 |
5 |
5 |
– |
5.3 |
10 |
0.6 |
±0.04 |
8 |
10 |
| 6 |
6 |
6 |
– |
6.4 |
十0.30 -0.00 |
11 |
十0.00 -0.50 |
0.6 |
9 |
12 |
| 7 |
7 |
7 |
– |
7.4 |
13 |
0.8 |
±0.05 |
10 |
– |
| 8 |
8 |
8 |
– |
8.4 |
15 |
0.8 |
9 |
12 |
| 3/8" |
3/8" |
– |
3/8" |
9.8 |
17.5 |
0.9 |
9 |
12 |
| 10 |
10 |
10 |
– |
10.5 |
十0.40 -0.00 |
18 |
0.9 |
9 |
12 |
| 7/16" |
7/16" |
– |
7/16" |
11.4 |
19.5 |
十0.00 -0.60 |
0.9 |
10 |
12 |
| 12 |
12 |
12 |
– |
12.5 |
21 |
1 |
±0.055 |
10 |
12 |
| 1/2" |
1.2" |
– |
1.2" |
13 |
22.5 |
1 |
10 |
12 |
| 14 |
14 |
14 |
– |
14.5 |
23 |
1 |
10 |
12 |
| 16 |
16 |
16 |
5/8" |
16.5 |
26 |
1.2 |
±0.065 |
12 |
14 |
| 18 |
18 |
18 |
– |
19 |
十0.50 -0.00 |
29 |
1.2 |
12 |
14 |
| 3/4" |
3/4" |
– |
3/4" |
19.6 |
32 |
十0.00 -0.80 |
1.2 |
12 |
14 |
| 20 |
20 |
20 |
– |
21 |
32 |
1.4 |
±0.07 |
12 |
14 |
| 22 |
22 |
22 |
7/8" |
23 |
35 |
1.4 |
14 |
16 |
| 24 |
24 |
24 |
– |
25 |
38 |
1.6 |
±0.08 |
14 |
16 |
| 1" |
1" |
– |
1" |
26 |
41 |
1.6 |
14 |
16 | |
 |
|
|
|
