 WW 详细资料 |
| 名 称：WW
|
| 型 号： |
| 类 型：
(Null)
|
| 规 格： |
| 日 期：2011-10-10 16:39:42 |
|
|

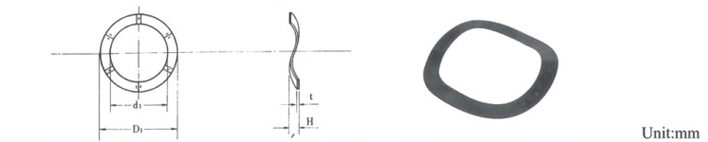

WW |
d1 |
D1 |
H |
t |
| Nominal Size |
Basic |
Tol. |
Basic |
Tol. |
Basic |
Tol. |
Basic |
Tol. |
| WW- |
4 |
4.3 |
十0.30 -0.15 |
8.O |
十0.0 -0.5 |
1.5 |
十0.5 -0.0 |
0.2 |
±0.02 |
| 5 |
5.4 |
9.O |
1.5 |
0.3 |
±0.025 |
| 6 |
6.4 |
11.O |
1.5 |
0.3 |
| 8 |
8.5 |
12.5 |
2.O |
0.3 |
| 10 |
10.5 |
14.5 |
2.O |
0.3 |
| 12 |
12.5 |
17.O |
2.5 |
十0.7 -0.0 |
0.3 |
| 14 |
14.5 |
20.O |
2.5 |
0.3 |
| 16 |
16.7 |
22.5 |
2.5 |
0.3 |
| 18 |
18.7 |
26.O |
3.O |
0.3 |
| 20 |
20.7 |
29.1 |
3.O |
0.3 |
| 23 |
23.5 |
十0.50 -0.30 |
31.O |
十0.0 -0.8 |
3.5 |
十1.0 -0.0 |
0.3 |
| 26 |
26.4 |
34.2 |
3.5 |
0.3 |
| 30 |
30.4 |
39.3 |
3.5 |
0.3 |
| 32 |
33.8 |
46.O |
4.5 |
0.3 |
| 38 |
39.O |
十0.70 -0.50 |
51.O |
十0.0 -1.2 |
5.O |
0.3 |
| 40 |
40.6 |
53.5 |
5.O |
0.3 |
| 46 |
47.5 |
61.O |
5.5 |
0.4 |
±0.03 |
|
 |
|
|
|
