 DB 详细资料 |
| 名 称：DB
|
| 型 号： |
| 类 型：
(Null)
|
| 规 格： |
| 日 期：2011-10-10 16:36:41 |
|

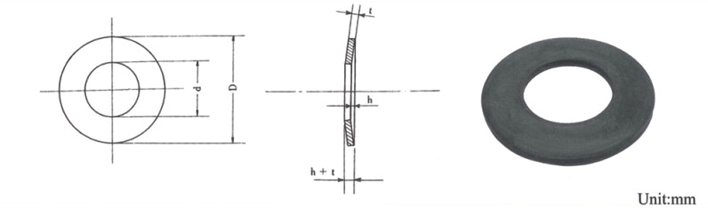

| DB |
d |
D |
H(Heavy Duty) |
L(Light Duty) |
| t |
h |
h+t |
t |
h |
h+t |
| Size-No. |
Bas |
Tol. |
Bas |
Tol. |
Bas |
Tol. |
App. |
App. |
Bas |
Tol. |
App |
App |
| DB- |
|
4 |
4.2 |
十0.3 -0.1 |
8 |
±0.3 |
0.4 |
±0.4 |
0.2 |
0.6 |
0.3 |
±0.03 |
0.25 |
0.55 |
| |
5 |
5.2 |
10 |
0.5 |
0.25 |
0.75 |
0.4 |
±0.04 |
0.3 |
0.7 |
| |
6 |
6.2 |
12.5 |
0.7 |
±0.5 |
0.3 |
1 |
0.5 |
0.35 |
0.85 |
| |
7 |
7.2 |
14 |
0.8 |
0.3 |
1.1 |
0.5 |
0.4 |
0.9 |
| |
8 |
8.2 |
16 |
0.9 |
±0.6 |
0.35 |
1.25 |
0.6 |
±0.05 |
0.45 |
1.05 |
| |
9 |
9.2 |
18 |
1 |
0.4 |
1.4 |
0.7 |
0.5 |
1.2 |
| |
10 |
10.2 |
十0.4 -0.1 |
20 |
±0.4 |
1 |
0.45 |
1.45 |
0.8 |
0.55 |
1.35 |
| |
11 |
11.2 |
22.5 |
1.2 |
±0.7 |
0.5 |
1.7 |
0.8 |
0.65 |
1.45 |
| |
12 |
12.2 |
25 |
1.5 |
0.55 |
2.05 |
0.9 |
±0.06 |
0.7 |
1.6 |
| |
14 |
14.2 |
28 |
1.5 |
0.65 |
2.15 |
1 |
0.8 |
1.8 |
| |
16 |
16.3 |
十0.5 -0.2 |
31.5 |
±0.5 |
1.75 |
±0.8 |
0.7 |
2.45 |
1.2 |
±0.07 |
0.9 |
2.1 |
| |
18 |
18.3 |
35.5 |
2 |
0.8 |
2.8 |
1.2 |
1 |
2.2 |
| |
20 |
20.4 |
40 |
2 |
0.9 |
2.9 |
1.5 |
1.15 |
2.65 |
| ● |
22 |
22.4 |
45 |
2.5 |
±0.1O |
1 |
3.5 |
1.75 |
±0.08 |
1.3 |
3.05 |
| |
25 |
25.4 |
50 |
3 |
±0.12 |
1.1 |
4.1 |
2 |
1.4 |
3.4 |
| ● |
28 |
28.5 |
56 |
3 |
1.3 |
4.3 |
2 |
1.6 |
3.6 |
| |
30 |
31 |
十0.6 -0.4 |
63 |
±0.6 |
3.5 |
1.4 |
4.9 |
2.5 |
±0.10 |
1.75 |
4.25 |
| |
35 |
36 |
71 |
4 |
1.6 |
5.6 |
2.5 |
2 |
4.5 |
| |
40 |
41 |
80 |
5 |
±0.15 |
1.7 |
6.7 |
3 |
±0.12 |
2.3 |
5.3 |
| |
45 |
46 |
91 |
5 |
2 |
7 |
3.5 |
2.5 |
6 |
| ● |
50 |
51 |
±0.7 |
100 |
±0.7 |
6 |
2.2 |
8.2 |
3.5 |
2.8 |
6.3 | |
 |
|
|
|
