 SPN 详细资料 |
| 名 称：SPN
|
| 型 号： |
| 类 型：
(Null)
|
| 规 格： |
| 日 期：2011-10-10 16:33:29 |
|
| SPN |

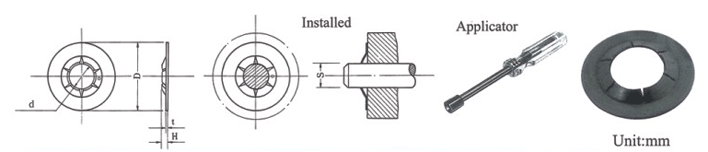

Ring dimension |
Applicable shaft |
Thrust Load |
| d |
D |
H |
T |
S |
| Size-No. |
Bas |
Tol. |
Bas |
Tol. |
kgf |
| SPN- |
1.2 |
1.1 |
十0.00 -0.10 |
4.5 |
0.6 |
0.25 |
1.2 |
十0.04 -0.03 |
20 |
| 1.5 |
1.4 |
5.2 |
0.6 |
0.25 |
1.5 |
20 |
| 2 |
1.9 |
6.0 |
0.7 |
0.25 |
2.0 |
20 |
| 2.4 |
2.3 |
十0.00 -0.15 |
7.0 |
0.8 |
0.25 |
2.4 |
45 |
| 2.6 |
2.5 |
7.0 |
0.9 |
0.25 |
2.6 |
45 |
| 3 |
2.9 |
10.0 |
1.3 |
0.3O |
3.0 |
十0.05 -0.03 |
100 |
| 4 |
3.9 |
12.0 |
1.4 |
0.3O |
4.0 |
100 |
| 5 |
4.9 |
14.0 |
1.55 |
0.4O |
5.0 |
150 |
| 6 |
5.9 |
16.0 |
1.75 |
0.4O |
6.0 |
十0.06 -0.03 |
170 |
| 8 |
7.9 |
17.5 |
1.8 |
0.5O |
8.0 |
180 |
| 10 |
9.9 |
21.0 |
2.2 |
0.7O |
10.0 |
十0.07 -0.03 |
320 |
| 12 |
11.9 |
|
27.O |
2.8 |
0.9O |
12.o |
400 | |
 |
|
|
|
